Dry Milk Cans Cartoning And Palletizing Line with Automatic Magazine Infeed

We customized a fully automated milk powder can cartooning and palletizing line for our US customer's back-end packaging plant.

Based on the space layout, a 9-meter-long conveyor belt was customized to transport the sealed milk powder cans to the packaging plant. The single row of milk powder cans on the assembly line was converted into three rows through a pop-up clamp-type material handler, and 9 cans of milk powder were loaded into 1 box through an automatic cartoning machine. The efficient cartoning machine enabled the output to reach 1,000 boxes per hour. The beautiful boxes sealed by hot melt glue are placed on wooden pallets by a movable palletizer according to a customized palletizing method. One pallet can be completed every 19 minutes, and after completion, it will automatically start palletizing the next pallet, and the two sides can cooperate to achieve continuous production.
Availability:
Quantity:

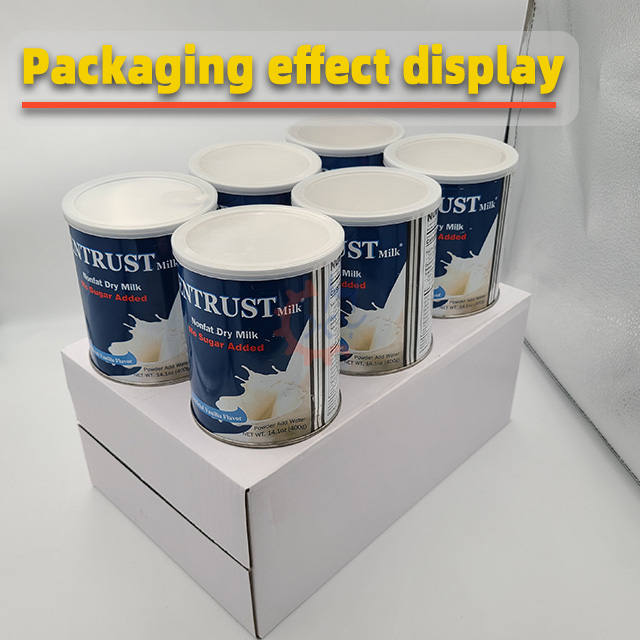

Private  customized packaging cases display

milk-powder-can-cartooning-and-palletizing-line


Case reference information

Material Information
Material Size

Carton: L 320*W 220*H 140mm

Milk powder can: diameter 102 * H 122mm

Main Technical Parameter
Speed

15-18 box/min

Gas source ≥0.6MPa
Total power 11.02KW (cartoning machine 10kw, mobile palletizer 1.02kw )



Inquire about the selling price of this case


Experience improved proficiency and cost investment funds with our bleeding edge cartoning machines. Intended to meet the assorted requirements of organizations, our machines offer adjustable choices that smooth out creation and lift efficiency. Via consistently incorporating our cartoning machines into your tasks, you can expect quicker bundling speeds, further developed dependability, and improved adaptability. With exact and mechanized processes, our customized packaging machines guarantee precise and predictable bundling, lessening blunders and limiting item squander. Moreover, our easy to use interface and high level control framework make activity and upkeep a breeze, lessening personal time and boosting uptime. Put resources into our cartoning machines to upgrade your bundling tasks, lessen creation expenses, and remain ahead in the present serious market.


Dry-milk-cans-cartoning-and-palletizing-line-layout

Conveyor Belt

conveyor-belt


Transition Line

Transition-Line


Automatic Magazine Infeed

Automatic-magazine-infeed


Cartoning Machine

cartoning-machine


Box Holder

cartoning-machine box-holder


Control Panel

cartoning-machine control-panel


Glue Machine

cartoning glue-machine


Mobile Palletizer

cartoning-machine Mobile-palletizerMobile-palletizer-back
