Automatic Cartoning Machine for Heavy Duty Plastic Knifes and Forks

The automatic cartoning machine for Heavy Duty Plastic Knifes and Forks has added many customized functions.

Firstly, the box holder capacity of the cartoning machine has been increased, which reduces the frequency of refilling the cartoning machine, reduces the labor intensity of workers, and improves efficiency;

Secondly, the function of steel printing and coding has been integrated into the cartoning machine, which saves the space of the plant by completing coding while cartoning;

Finally, we have redesigned the output port of the cartoning machine for the needs of customers, so that the carton can be directly divided into left and right columns after the carton is sealed and formed. The cartoning machine can make the cartons stacked vertically in two columns of 8 or 10 boxes each. It is convenient for the back-end robot to grab and load the cartons into the outer box at one time.

In addition, this knife and fork cartoner is compatible with 6 carton sizes, and the production speed can still reach 10-20 cartons per minute.

Availability:
Quantity:
  • ZHP Series

  • Y-Pack

Automatic Cartoning Machine for Heavy Duty Plastic Knifes and Forks


forks-cartoning-machine


Case reference information

Material Information
Carton size

Carton 1:L160*W90*H40mm

Carton 2:L155*W90*H44mm

Carton 3:L173*W90*H42mm

Carton 4:L157*W90*H29mm

Carton 5:L155*W90*H32mm

Carton 6:L170*W90*H30mm

Main Technical Parameter
Speed
10-20 boxes/min
Gas source 0.6-0.8MPa
Total power 4.6KW (cartoing machine 1.1kw, glue machine 3.5kw)



Inquire about the selling price of this case


Best-Choice-Heavy-Duty-Forks-Cartoning-Layout


Large capacity box holder

forks-cartoning-machine-box-holder

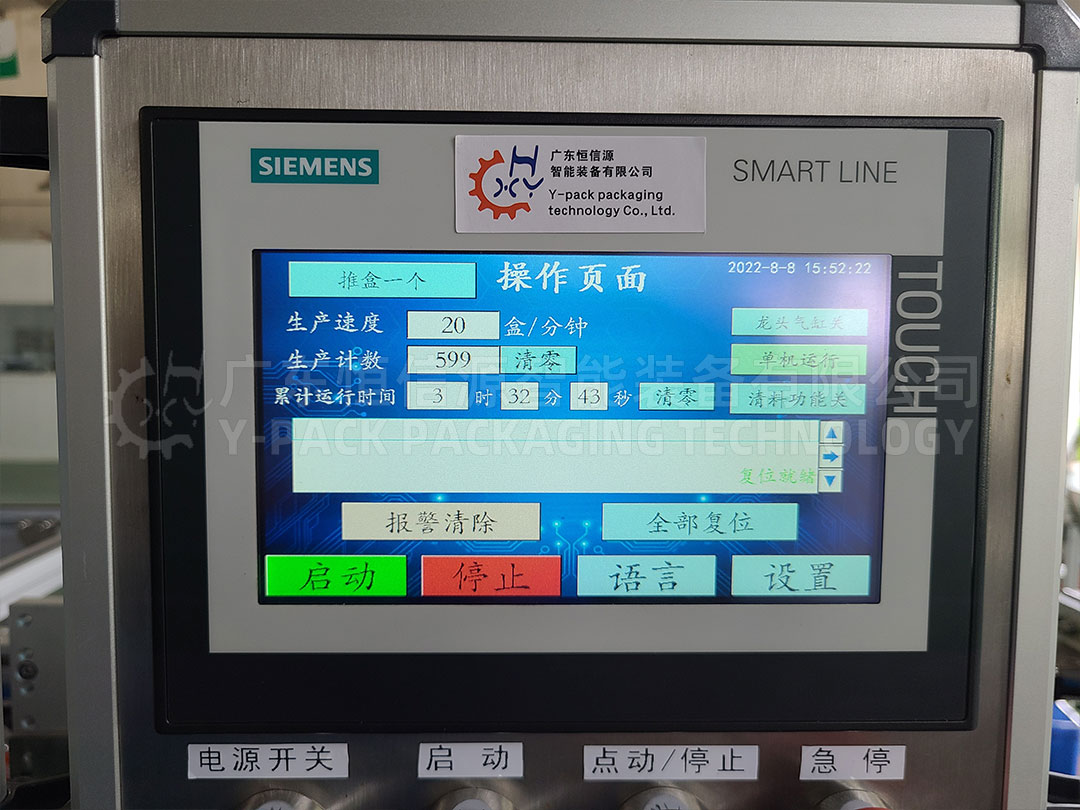

Control Pannel

forks-cartoning-machine-control-panel

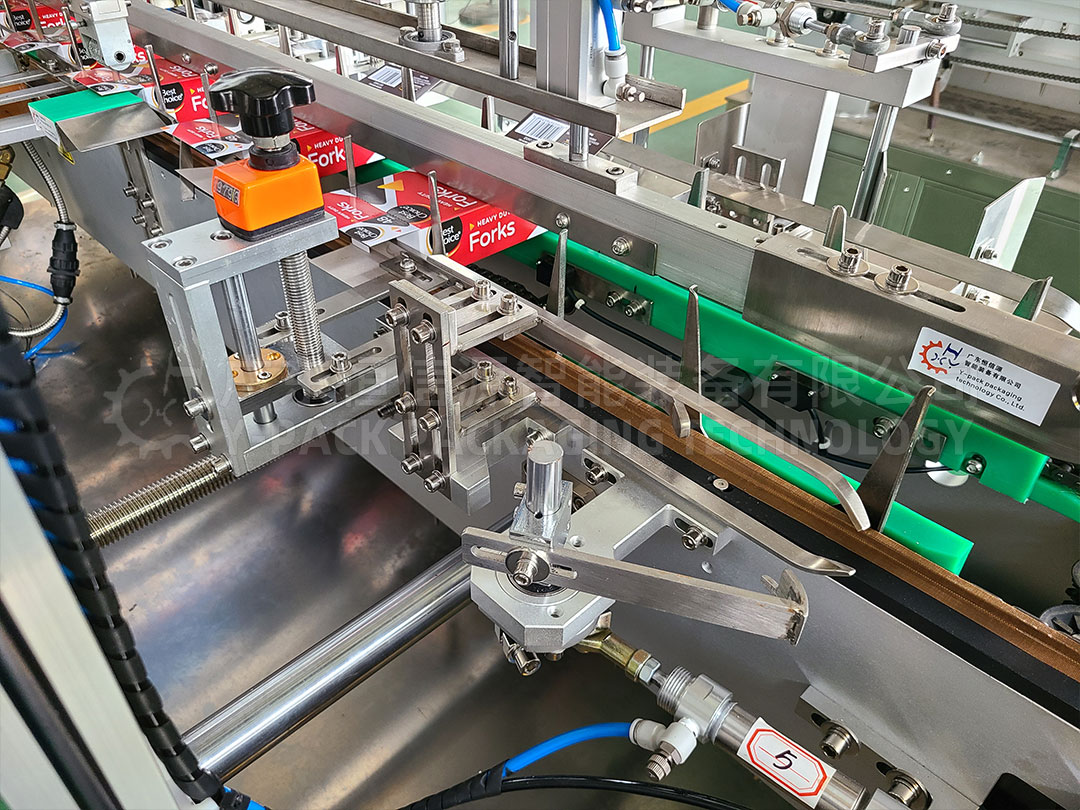

Box Forming Mechanism

forks-cartoning-machine-forming-mechanism


Coding Mechanism

forks-cartoning-machine-coding-mechanism

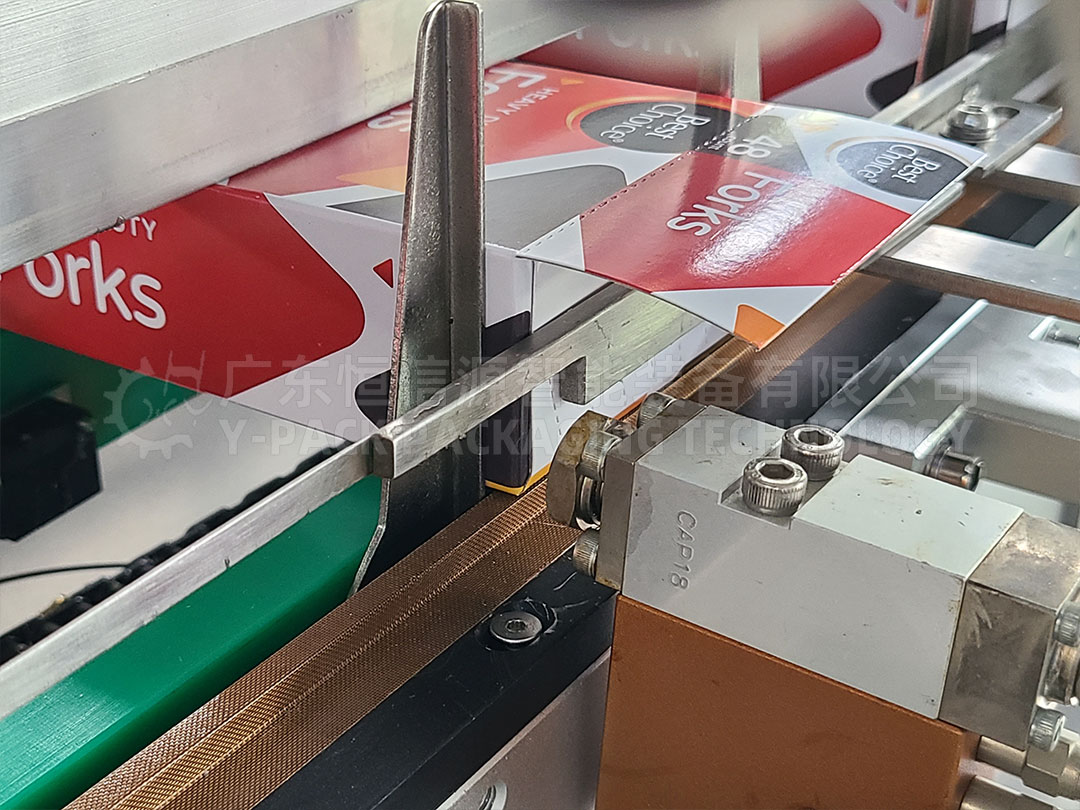

Glue Gun

forks-cartoning-machine-glue-gun

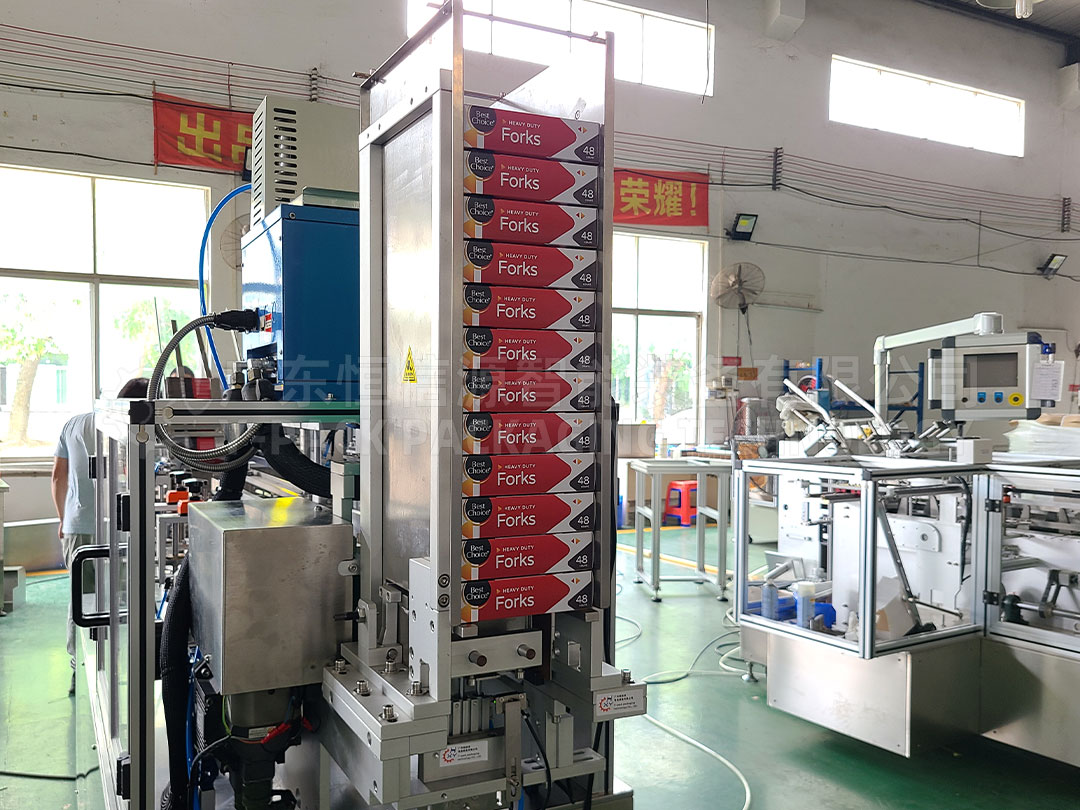

Finished product outlet

forks-cartoning-machine-outlet
