Automatic Box Packing And Sealing Production Line For Ice Cream Bars

Updated,3/11/23

Thank you for your interest! We are pleased to introduce you our latest product: automatic box packing and sealing production line for ice cream bars&chocolate bars. This line is composed of a medium cartoning machine, a conveyor belt, a case packer machine, an box erector machine and a sealing machine, and is designed to improve the efficiency and quality of chocolate bar packaging.

Using the automatic box packing and sealing production line for ice cream bars&chocolate bars not only reduces manual labor, but also ensures that each chocolate bar is perfect in the packaging process and reduces the influence of human factors. The cartoning machine automatically loads every five chocolate bars into boxes and turns them 90 degrees into vertical state through the conveyor belt, then the case packer machine loads six boxes of chocolate bars into the outer box erected by the automatic box erector machine, and finally the sealing machine automatically seals the boxes. The whole process is simple and efficient, easy and convenient to operate.

The automatic box packing and sealing production line for ice cream bars&chocolate bars is a perfect solution for chocolate manufacturers of all sizes. It not only improves production efficiency, but also ensures product quality and packaging consistency, further improving the quality and brand image of the product.

Our automatic box packing and sealing production line for ice cream bars&chocolate bars meets international quality standards and has strict quality control procedures and testing systems. We use high quality raw materials and the latest manufacturing technology to ensure that each line has a long service life and efficient performance. In addition, we provide comprehensive after-sales service to ensure our customers can easily use and maintain our products.

If you are interested in our automatic box packing and sealing production line for ice cream bars&chocolate bars, please feel free to contact us by email and we will reply to you as soon as possible with more details about this product.
Availability:
Quantity:
  • Y-Pack


Automatic Box Packing and Sealing Production Line For Ice Cream Bars


Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars


Case reference information

Material Information
Material Size

Carton: L180*W164*H59mm

Case: L375*W190*H200mm

Main Technical Parameter
Speed

30~40 boxes/min

6~7 cases/min

Gas source ≥0.6MPa
Total power 4.6KW



Inquire about the selling price of this case

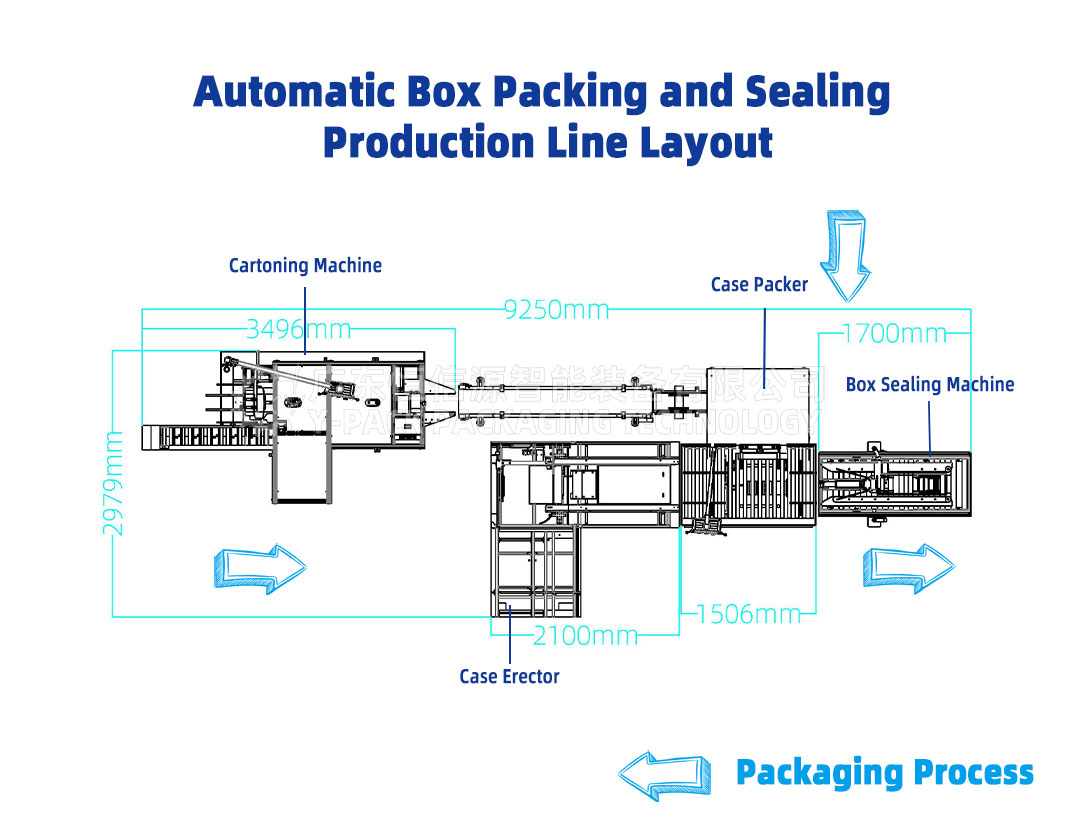

Automatic Box Packing and Sealing Production Line Layout

More Real Pictures

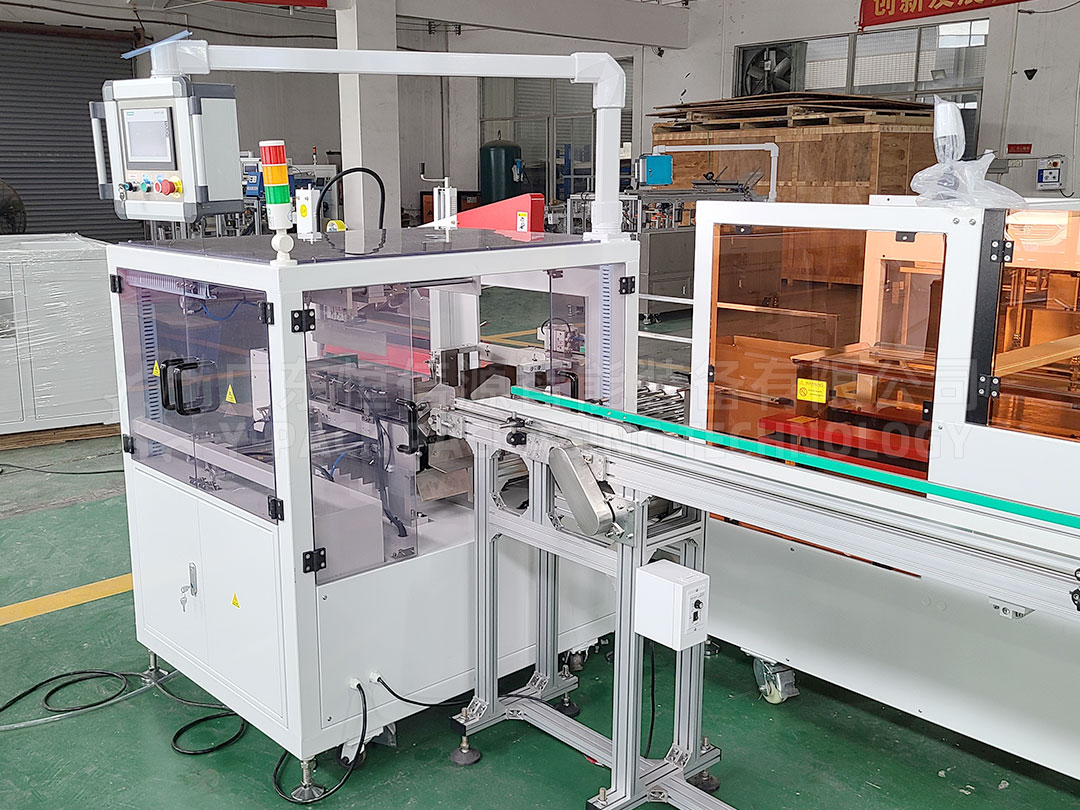

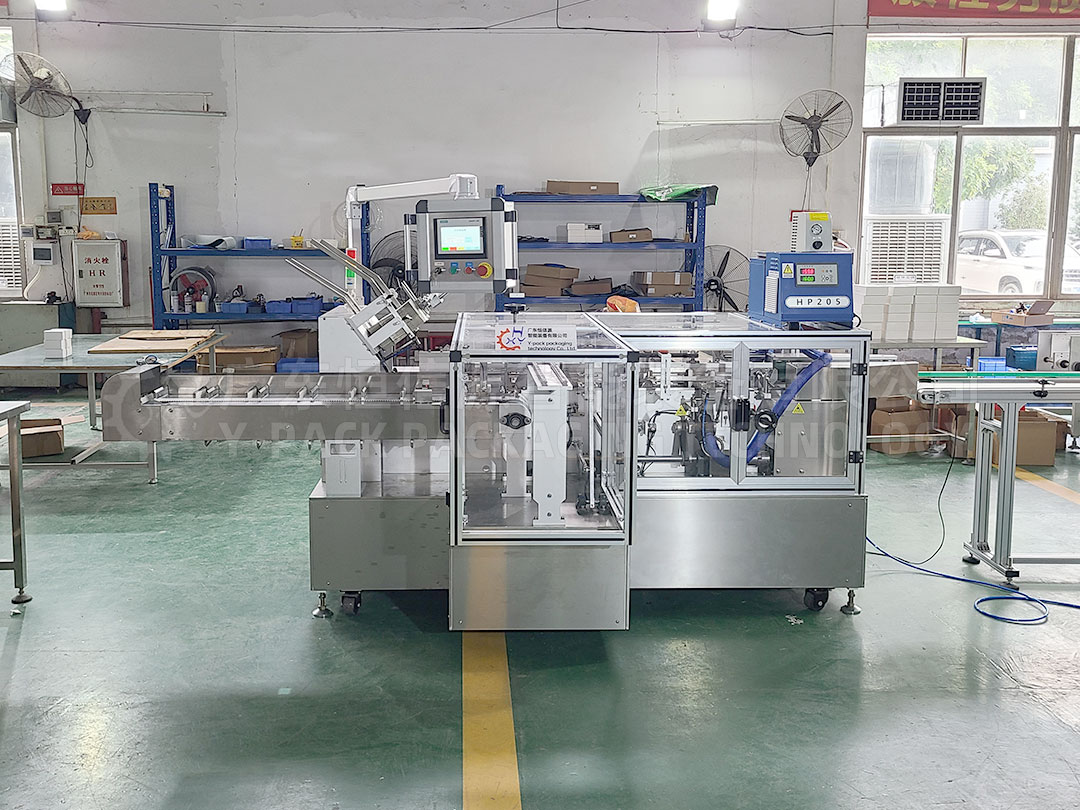

Cartoning-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

Cartoning-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

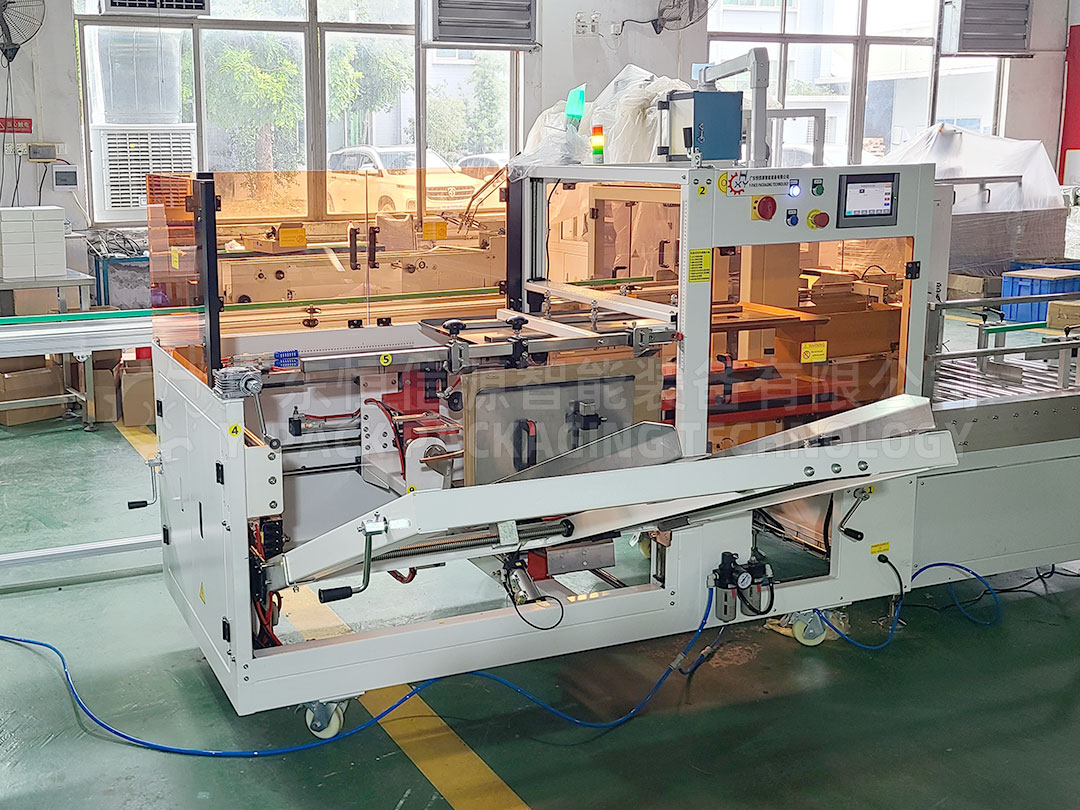

Case-Erector-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

Case-Erector-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

Case-Packer-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

Case-Packer-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

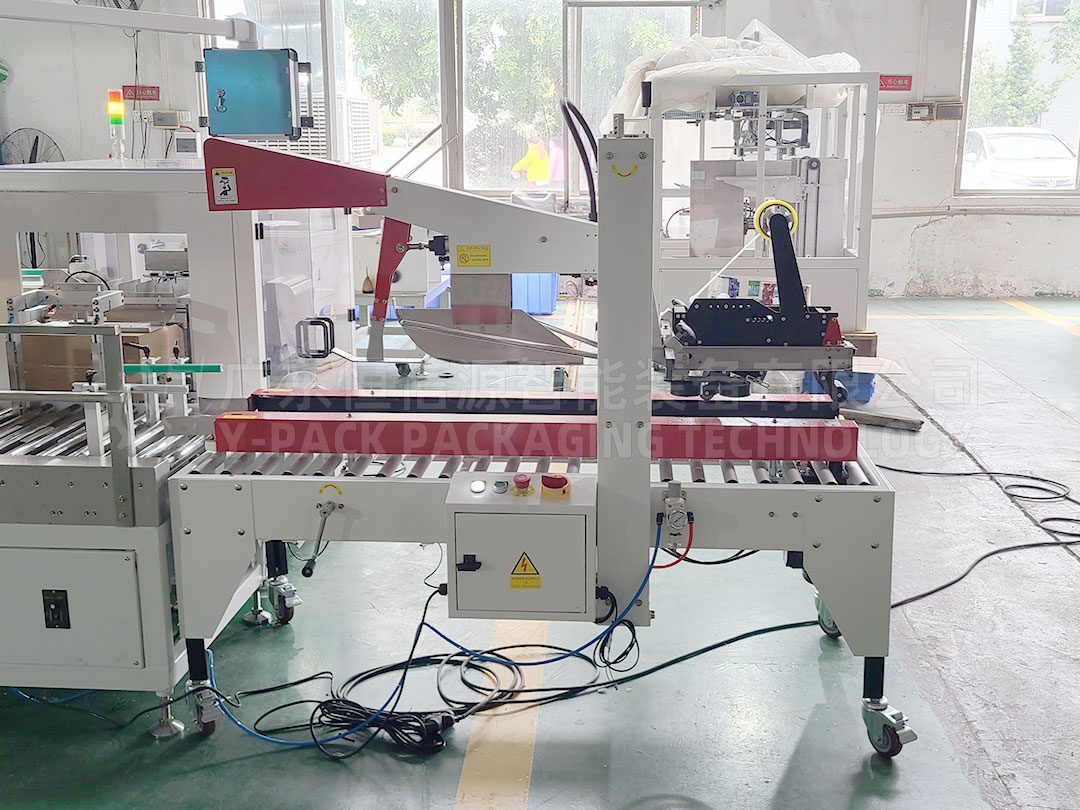

Box-Sealing-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars

Box-Sealing-Machine-Of-Automatic-Box-Packing-and-Sealing-Production-Line-For-Ice-Cream-Bars
