| Main Technical Parameter | |
| Weighing range | 1-1000g |
| Indexing value | 0.1g |
| Selection accuracy | ±0.3-0.5g |
| Detection speed | 40m/min (adjustable) |
| Detection object size | 190-215(L)×105(W)×110(H)(mm) |
| Feed section conveying size | 350(L)×230(W)(mm) |
| Weighing section conveying size | 450(L)×230(W)(mm) |
| Reject section conveying size | 500(L)×230(W)(mm) |
| Overall machine size | 1300 (L) × 1540 (W) × 1400 (H) (mm) (for reference only) |
| Housing material | Stainless steel SUS304 |
| Conveyor belt height from the ground | 750mm (height ±50mm adjustable) |
| Component unit | speed matching unit, weight detection unit, reject unit |
| Rejecting method | defective product push rod rejecting |
| Storage formula | 100pcs |
| Conveying direction | Facing the display from left to right |
| Power supply | AC220V±10%, single phase |
| Data transfer | Equipped with USB interface; RS232, 485 or Ethernet communication port. |
| Use environment | -10-45℃,90%R.H no frost |
| Air source | 0.5-0.8MPa |

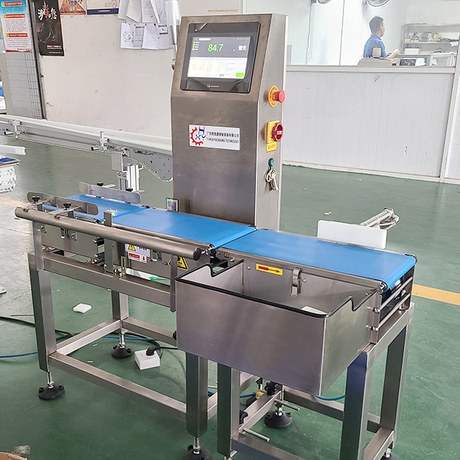

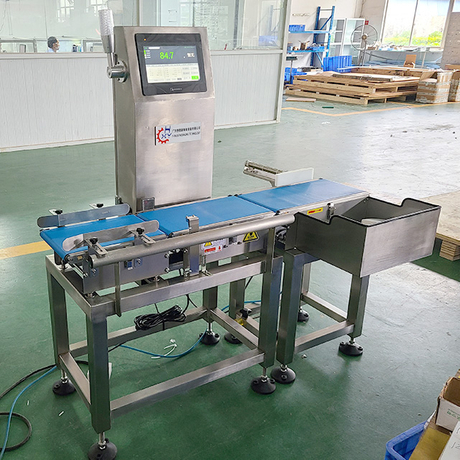

Checkweigher with Rejection system gives ongoing information and investigation, empowering organizations to screen creation patterns, recognize possible issues, and pursue informed choices to enhance their cycles. By and large, the Checkweigher with Dismissal framework is an important venture for organizations expecting to upgrade quality control, increment efficiency, and keep an upper hand on the lookout.
